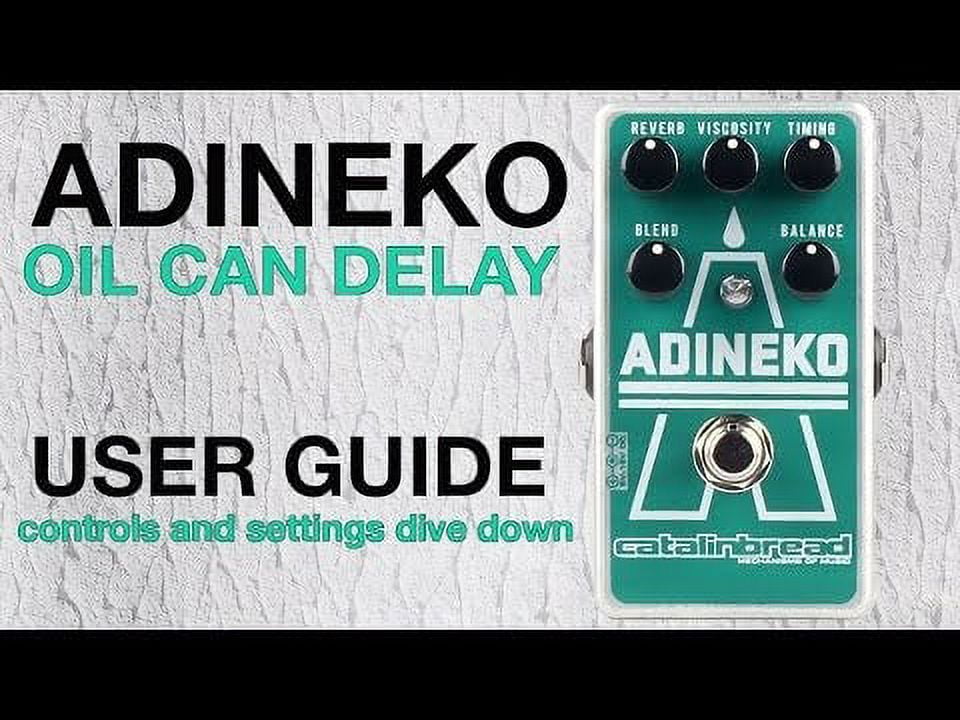

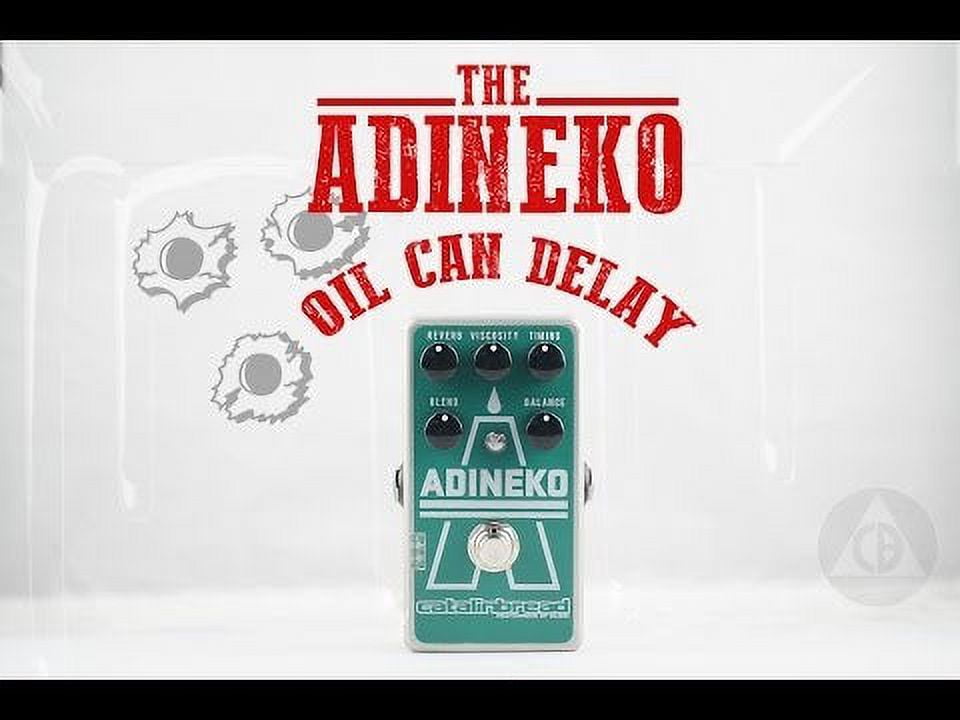

Catalinbread Adineko Oil Can Delay Guitar Effect Pedal

Oil can delay units were manufactured by a company named Tel-Ray who later became better known as Morley.<p>&nbsp;Oil can delay&nbsp;units were manufactured by a company named Tel-Ray who later became better known as Morley. Tel-Ray&nbsp;mostly focused on being&nbsp;the OEM&nbsp;utilizing their oil can technology (Patent US3530227 A), branding units for Gibson (GA-RE4), Fender (Dimension IV), Acoustic, etc.&nbsp;They employed an&nbsp;electro-static storage&nbsp;method&nbsp;where the signal is “recorded” to a spinning disk, a layer of oil (for years rumored to be a mysterious carcinogenic oil) prevented this signal from leaking into the air before a “pickup” moments later played back the signal recorded to the disk. Compared to the counterparts of the day (tape, drum, wire delay machines), their sound was more low fidelity, murky, often with a more consistent musical vibrato that correlated to the spinning disk speed.&nbsp;We like to describe the sound as mysterious.&nbsp;The Catalinbread ADINEKO pedal is an echo, reverb, vibrato pedal that faithfully models the sonic experience of these oil can units.</p><p>MODEL: ADINEKO<br>Power Source: 9-18V DC power supply <br>Power Usage: 60mA<br>Max Delay Time: 1 Second<br>Height: 1.96"<br>Width: 2.36"<br>Depth: 4.33"<br>Weight: .40 lbs</p>

• Ergonomics: Catalinbread ADINEKO Oil Can Delay Pedal is an echo, reverb, vibrato pedal that faithfully models the sonic experience of the oil can units
• Blend: This control allows you to mix between 100% wet and 100% dry signals. The original units featured tube preamp stages, the ADINEKO’s preamp stages are tuned to provide very much the same experience as a healthy example of an original unit
• Timing: Majority of original oil can units have a fixed rotation speed hence a fixed delay time and fixed vibrato time (there were models with a mechanical motor brake to slow it down), however the actual maximum delay time was very short from 80-120ms. The ADINEKO extends your modulated delay time up to one second
• Reverb: Functions like the repeats on any echo unit, it feeds back the wet output back into the input of the delay line. On oil can delays and the ADINEKO the repeats quality smears into a soupy foggy due to the low fidelity of the record medium and the fact that the echoes are always modulating
• Power: Features 9-18V DC power supply
