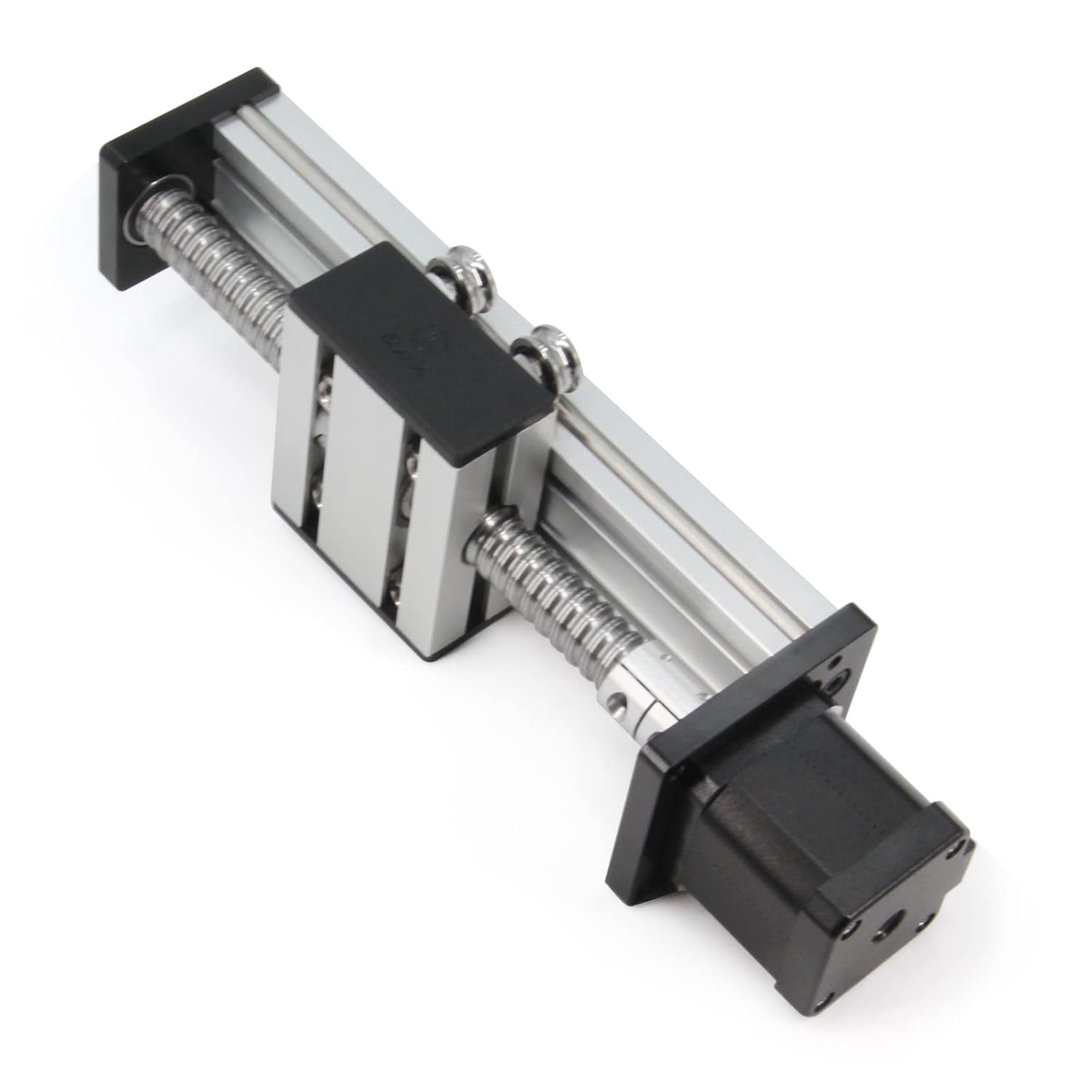

100mm Effective Stroke Length Linear Rail Guide Ballscrew SFU1605 with Nema 17 Stepper Motor for CNC Router Machine Parts X Y Z Linear Stage Actuator (Size:100mm)

Product Name: 100mm Effective Stroke Length Linear Rail Guide Ballscrew SFU1605 with Nema 17 Stepper Motor for DIY CNC Router Machine Parts Tips: Make sure you have the drive and controller, no drive and controller stepper motor will not work Linear Stage Actuator Parameter: Effective Travel Length: 100mm/3.93" Total length: 260mm/10.2" Type: linear system moulde Ballscrew Type: SFU1605; Diameter: 16mm, Pitch of Screw: 5mm Lead: 5mm (the lead screw can move 5mm in one turn), 4pcs M6 threaded hole on the moving block to fix the workpiece Level Ballscrew: C7 Weight: about 1265g Stepper Motor Parameter: Step angle: 1.8 degree Motor flange size: 42mm Motor length: 47mm Holding torque: 1.2N.m Current: 1.5A Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 87.3g.cm Lead wire: 4pcs Wiring: Black: A+ Green: A- Red: B+ Blue: B- Widely used for CNC Router Machine, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement. Package Included: 1Kit Linear Stage Actuator with NEMA17 Stepper Motor 1pcs Stepper Motor Cable 3pcs Allen Wrench Please Note: Any question or problem, do not hesitate to contact us, we will reply you within 24 hours As Manual measurement, please allow slight errors on size The color may exist slight difference due to different screen displays Due to different display screens and lighting effects, the actual color of the item may be slightly different from the color shown on the picture.

• The Linear Guide Material: made of high quality metal, surface oxidation treatment, high hardness and excellent performance.
• Effective Travel: 100mm Effective Travel, Total length: 260mm, Ballscrew Type: SFU1605 ( diameter: 16mm, pitch of screw: 5mm ) Lead: 5mm (the lead screw can move 5mm in one turn), 4pcs M6 threaded hole on the moving block to fix the workpiece.
• High Precision: Linear Guide Repeat positioning accuracy of ±0.03mm, linear slide rail with high precision smooth movement.
• Load: Horizontal maximum load capacity: 30kg; Vertical maximum load capacity: 15kg; Speed: 0-50mm/s
• Widely used for CNC Router Parts, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement.
